Using SQL*Plus

Overview

SQL*Plus file commands

SQL*Plus edit commands

Run SQL statements in a batch

Output results to a file

DUAL and select the current time

Simple formatting query results

Getting Help

Overview

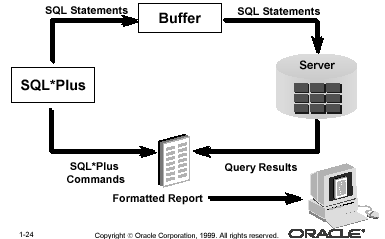

SQL*Plus is a client terminal software allowing users to interact with Oracle server to manipulate data and data structures. Users type in SQL statements in SQL*Plus that send statements to Oracle server. Oracle server then validates and executes the statements on its databases. The query results are returned to SQL*Plus and displayed to the user. Besides sending SQL statements to the server, SQL*Plus also saves them into a local buffer and allow users to view and change the statements. The following figure illustrates the process.

After you login into SQL*Plus, at the SQL prompt, you can begin typing any SQL command. Upon hitting return (i.e., enter key) the SQL prompt will change to line number prompts. When you are finished typing a command, type / or RUN to execute the SQL command. Also, a semicolon at the end of the SQL command will execute the command immediately after hitting return. In addition to SQL commands, /, and RUN, you can also executes SQL*Plus file commands.

SQL*Plus file commands

SQL*Plus file command allow you to execute commands (or programs) stored in an external file, input or output data from/to a file, and save SQL commands typed during current session.

Some SQL*Plus file commands are:

SAVE filename. This allows you to save buffer contents into a file.
START filename. This allows you to execute a batch of SQL statements stored in a file. More are explained here.
SPOOL filename. This allows you save SQL statements together with their outputs to a file. More are explained here.
GET filename. This retrieve a file and places it into the buffer.
@ filename. This allows you to execute a PL/SQL procedure(s) stored in a file. More are explained here.

SQL*Plus edit commands

Recall that the previously executed commands (in current SQL*Plus session) are stored in the local buffer. One way to change an SQL statement in the buffer is by using the line editor. The following are a list of line edit commands.

LIST or L--Lists the contents of the buffer
LIST n or L n--Lists the contents of line number n in the buffer and makes the line current
LIST * or L *--Lists the current line
LIST m n--Lists the range from m to n line
Append text or A text--Adds to the end of the current line (e.g., "A ," adds a comma to the end of line
INPUT or I--Adds one or more lines after the current line so you can begin adding the text.
CHANGE /text--Deletes text from the current line
CHANGE /oldtext/newtext--Replaces oldtext with newtext in the current line
DEL -- Deletes the current line

Besides line editor, you can also use the vi editor if you are a fan of Unix editor!.

To invoke the vi editor, type Edit at the SQL Prompt. Multiple SQL commands can be typed in vi editor. End each SQL command (except the last one) with a semicolon. After exiting notepad, type Start to run all of the commands.

Run SQL statements in a batch

To run SQL commands in a batch, you can put all your SQL commands into a text file and execute these commands in this file in SQL*PLUS.

Use your favorite editor to type in your SQL queries into a text file.
For example,

wanghao@sf3:~/cs6203[513]$ more table.sql
DROP TABLE employee
/

commit
/

CREATE TABLE employee (
empno INTEGER NOT NULL,
name VARCHAR2(50) NOT NULL,
sal REAL NOT NULL,
primary key (empno));
/

INSERT INTO employee VALUES (1, 'Jack', 6000);
INSERT INTO employee VALUES (2, 'Tom', 6000);
INSERT INTO employee VALUES (3, 'John', 6000);
INSERT INTO employee VALUES (4, 'Jane', 6000);
/

UPDATE employee SET sal=500 WHERE name='Jack'
/

CREATE INDEX test_index on employee(sal)
/
wanghao@sf3:~/cs6203[514]$

Connect into SQL*Plus, and run the batch of commands. For example, assume that you name the SQL file as table.sql.

Output results to a file

You can record your SQL command outputs to a file for output or editing purpose.
For example,
All SQL commands and their outputs after this command are written into the file myoutput.out that by default is stored in the current working directory where you invoked SQL*Plus.
To end recording, use the following command:

SQL> SPOOL OFF;

DUAL and select the current time

The built-in function SYSDATE returns a DATE value containing the current date and time on your system. (Note Oracle is a client-server architecture and SQL*Plus is the client. SYSDATE gives you the time of the Unix system which you telnet in. It may NOT be the time of Oracle server unless you telnet into the machine running Oracle server.)

For example,

	SQL> SELECT TO_CHAR(SYSDATE , 'Dy DD-Mon-YYYY HH24:MI:SS') as "Current Date/Time" FROM DUAL;;

returns

Current Time
---------------------------------------------------------------------------
Mon 15-July-2002 10:01:29

TO_CHAR is a function to format a value.
DUAL is built-in relation in Oracle which serves as a dummy relation to put in the FROM clause when nothing else is appropriate. For example, try "SELECT 2+2 FROM DUAL;".

Simple formatting query results

To format a number attribute to a dollar format, use the column <attribute> format <format>:
```
  	SQL> COLUMN salary FORMAT $999,999
```
To indicate the displayed width of a character string attribute, use the column <attribute> format <A'format>. For example, set the width of the name attribute to 8 characters.
```
 	SQL> COLUMN name FORMAT A8
```
If a name is longer than 8 characters, the remaining is displayed at the second line (or several lines)
The set command can be used to change the default number of lines per page (14) and the number of characters per line (80).
For example, to set the number of lines per page to 60, use the following command:
```
	SQL> SET PAGESIZE 60
```
All formatting remain active until they are cleared or reset or after you exit from SQL*Plus.
```
 	SQL> CLEAR COLUMN
```

Getting Help

If you forget a specific SQL command you could enter
You could also find out all commands by entering:

Sometimes when you get something fuzzy, you can try the following

SQL> SET SERVEROUTPUT ON
SQL> SET ARRAYSIZE 1
