BlinkApp is a simple application in the TinyOS distribution. BlinkApp toggles the mote LED periodically, with three timers at different periods. The application contains two .nc files:

The .sn file for PAT is Blink.sn, which contains the verification goals that are discussed in (B)Verification.

(A) Simulation

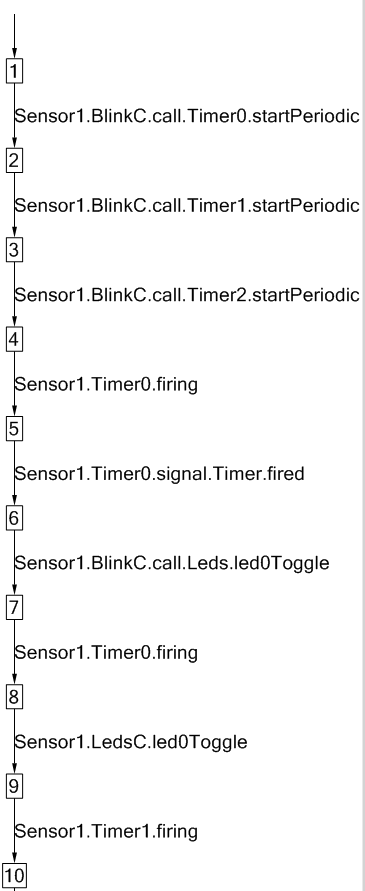

The figure on the left shows the first few steps when simulating BlinkApp. A square stands for a configuration (state) of the LTS, and an arrow is an transition between configurations, labelled with the corresponding action.
As an example, initially, state 1 transits to state 2 with the action Sensor1.BlinkC.call.Timer0.startPeriodic, which means that, component BlinkC calls the command startPeriodic via the interface Timer0, which will trigger Timer0 to start timing and fire after an amount of time. Similar are the meanings for action Sensor1.BlinkC.call.Timer1.startPeriodic and Sensor1.BlinkC.call.Timer2.startPeriodic.

State 4 transits to state 5 with the label Sensor1.Timer0.firing, which stands for an interrupt from Timer0 meaning that Timer0 is firing. Then Timer.fired event is signaled. This reserves the semantics of the timing service in TinyOS.

State 5 transits to state 6 by signalling the event Timer.fired from the component Timer0. The body of the event Timer.fired is defined by BlinkC. Therefore, state 6 transits to state 7 by the event Sensor1.BlinkC.call.Leds.led0Toggle, which is the only statement of event Timer0.fired in component BlinkC.

In PAT, variables are introduced to model the status of leds. For example, variable Sensor1.LedsC.led0 keeps track of the status of led0 of a mote.











(B) Verification
Users can define assertions to verify the NesC application for various properties, using the assertion annotation language described in Defining verification goals (assertions).

As for BlinkApp, several assertions are defined, with states.
The following table defines three states that are used in the assertions later.

State Definition

Description

#define led0ON Sensor1.LedsC.led0 == 1;

Led 0 is ON.

#define led0OFF Sensor1.LedsC.led0 == 0;

Led 0 is OFF.

#define led1ON Sensor1.LedsC.led1 == 1;

Led 1 is ON.

This table defines eight assertions for different properties of BlinkApp.

NO.

Assertion

Property

1

#assert Sensor1 |= <> [] led0ON;

Led 0 will eventually always be ON, i.e.
led 0 will finally be ON constantly.

2

#assert Sensor1 |= [] <> led0ON;

Led 0 will always eventually be ON, i.e.
led 0 will be ON infinitely often.

3

#assert Sensor1 reaches led1ON;

The state where led 1 is ON will be reached
within finite steps.

4

#assert Sensor1 deadlockfree;

The system is deadlock free.

5

#assert Sensor1 nonterminating;

The system is nonterminating.

6

#assert Sensor1 |= []<> led0OFF;

Led 0 will always eventually be OFF, i.e.
led 0 will be OFF infinitely often.

7

#assert Sensor1 |=
      [] ((led0ON -> (<> led0OFF)) && (led0OFF -> (<> led0ON)));

Whenever led 0 is ON it will eventually be OFF,
and vice versa.

8

#assert Sensor1 |= [] <> Sensor1.LedsC.led0Toggle;

Compoent LedsC toggles led 0 infinitely often.

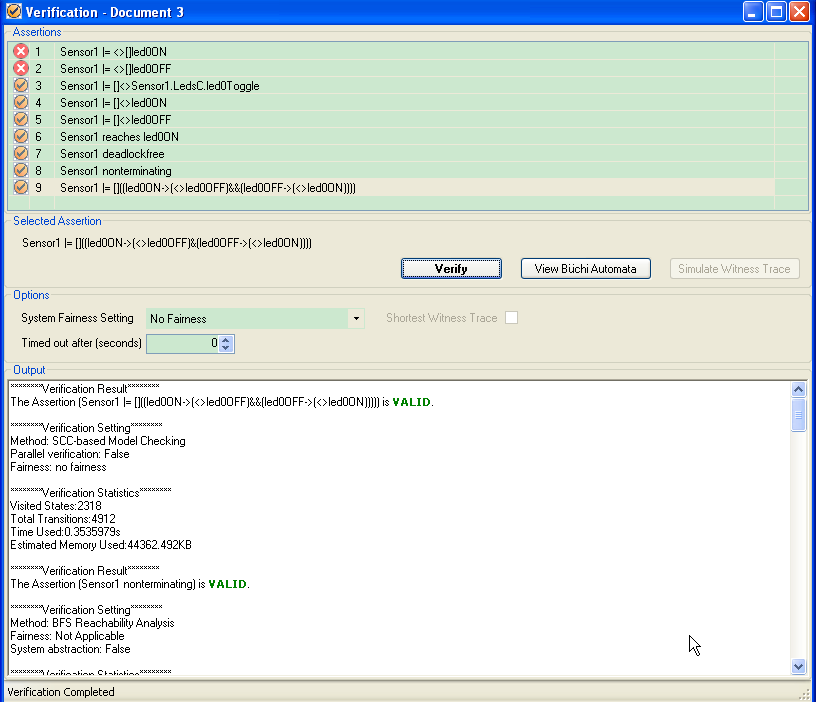

The results of verifying BlinkCApp against the assertions defined above are as the following figure. Notice that all properties are satisfied by BlinkApp, except the first one, which is reasonable.
