Results on Low Autocorrelation Binary Sequence Problem

Problem Definition

LABS is an NP-hard problem of finding a binary sequence s={s1,s2,...,sn} with si {-1, 1} that minimizes Energy E(s) or maximizes merit Factor F(s), where:

Some example of LABS Instances

LABS is a COP without particular input... LABS instances are only determined by the size n, the length of the binary sequence.
For example, with n=3, the best binary sequences are {1,-1,-1}, {-1,1,1}, {-1,-1,1}, or {1,1,-1}, with E(s) = 1 and F(s) = 4.5.

Fitness Landscape and Search Trajectory Analysis

We use the simple Tabu Search algorithm proposed in "A Note on Low Autocorrelation Binary Sequences" (Dotu and van Hentenryck, 2006) to analyze the fitness landscape of LABS instances and managed to come up with a statistically significantly faster search strategy. Our tweaked Tabu Search algorithm (named as TSv7) managed to reach state-of-the-art performance. TSv7 is faster than any existing LABS solvers to date (since April 2008) until someone else develop a better solver. Please let us know (stevenhalim at gmail dot com) if you know a better LABS solver.

Note: we can exploit symmetry property in LABS when sampling the Local Optima. As soon as we get a LABS solution with objective value equals to the known optimal values, quickly generate all its symmetries. Fig 1. As soon as we know one GO (blue circles), immediately generate all its symmetrical GOs, as shown in Fig 2.

Observable characteristics of
LABS fitness landscape:

1. Global optima are spread in the fitness landscape, not clustered!

2. The distance between any local optima (non blue circles) and the NEAREST global optima is NOT near but falls in the range of Hamming Distance [n/4 .. 2n/5] bits away.

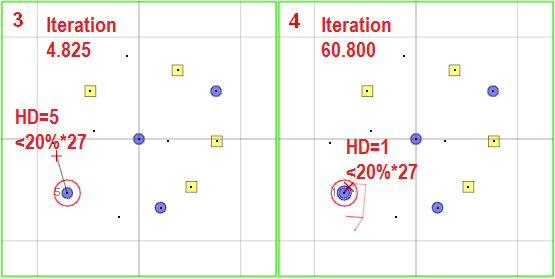

Some observable TS behavior:
3. TS are frequently seen to be near one of the global optima (near is defined as 20%*n and here n = 27). TS just need to flip 5 more correct bits to reach this nearest GO, but TS does not do it.

4. Only thousand iterations later, TS hits this GO.

This leads us to a simple but working insights of making TS do frequent LOCAL restarts around (but not too close, n/4 bits away) the current local optima in bid to reach the nearest GO faster! We call this strategy as TSv7.

C++ source code for TSv7 is available upon request, e-mail stevenhalim at gmail dot com !

Results

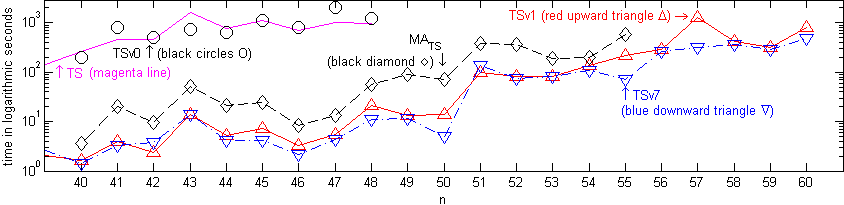

In the table below, we list down and compare the average runtimes in seconds (20 runs) for these SLS algorithms:

1. TSv0, the original implementation by (Dotu and van Hentenryck, 2006)
2. MA_TS, previous state-of-the-art "A Memetic Algorithm for the Low Autocorrelation Binary Sequence Problem" (Gallardo et al., 2007)
3. TSv1, our implementation of the TS algorithm in (Dotu and van Hentenryck, 2006)
4. TSv7, our improved implementation using the search strategy mentioned in the FLST analysis above

to get the 1st LABS solution with objective value equals to the known optimal values when these SLS algorithms are started from random LABS solution. The LABS instances tested are those with known optimal value (40
n 60). The CPU used for each experiments are listed in the respective columns.

Our TSv1 implementation is clearly faster than TSv0, the explanation of this phenomenon are mentioned in our paper. TSv1 and obviously TSv7 are also faster than MA_TS. As a rough comparison, P4 3 GHz is ~1.25 times faster than P4 2.4 GHz (same architecture); Centrino Duo 2 GHz should be slightly faster than P4 2.4 GHz (different architecture), but likely not up to twice or even three times faster; and Centrino Duo 2 GHz is more or less similar with P4 3 GHz. It can be seen that TSv1 and TSv7 are still safely faster than MA_TS after accounting the possible differences in computing environment.

Then, the new search strategy employed in TSv7 also significantly boost its performance on certain instances compared to TSv1, e.g. n = {45, 48, 50, 55, 57, 60} (see the green pairs) and slightly faster on almost all instances. Wilcoxon signed-ranks test on these 21 matched pairs of average runtimes detects a significant difference between these two average runtimes data (T = 27.5, p < 0.1),  making TSv7 the current state-of-the-art LABS solver.

We have also created a simple 'Run Length to LABS objective value verifier' program (with its C++ source code). Run "LABS <RLN>" in command line to check whether the objective values reported in this table (and the table below for n > 60) are indeed correct.

n Opt
E(s)
Opt
F(s)
TSv0

P4
3 GHz
MA_TS

P4
2.4 GHz
TSv1

Centrino
Duo 2 GHz
TSv7

Centrino
Duo 2 GHz
One of the optimal LABS
(in Run Length Notation)
40

108

7.41

260.11

3.67

1.65

1.43

111211211343143131312

41

108

7.78

460.26

19.79

4.01

3.29

112112182222111111343

42

101

8.73

466.73

9.76

2.36

3.76

211211211343143131313

43

109

8.48

1600.63

51.56

13.90

13.65

1132432111117212112213

44

122

7.93

764.66

21.56

5.15

4.17

525313113111222111211121

45

118

8.58

1103.48

24.77

7.24

4.08

82121121231234321111111

46

131

8.08

703.32

8.34

3.32

2.18

73235111112132122112121

47

135

8.18

1005.03

13.27

5.61

4.31

111221111111211222224924

48

140

8.23

964.13

56.86

20.95

11.20

1211211222123412381111113

49

136

8.83

-

~75^

13.45

11.66

1121212111112131223137333

50

153

8.17

-

~50^

14.22

4.94

11211211123111111312224527

51

153

8.50

-

~360^

99.78

137.29

23432111141313116212112121

52

166

8.14

-

~340^

82.58

75.89

111141111333713221321212121

53

170

8.26

-

~190^

81.00

81.25

26522313111221215141112111

54

175

8.33

-

~190^

138.84

110.16

121111111222211212141522653

55

171

8.85

-

~560^

214.73

72.50

11221221111111121142114A2323

56

192

8.17

-

>650 (19)^

290.09

265.59

1112212112311111423211322167

57

188

8.64

-

>750 (10)^

1294.28

323.55

11212212211112172111113623233

58

197

8.54

-

>640 (13)^

409.52

360.61

2112342311212418312321311111

59

205

8.49

-

>610 (18)^

315.17

295.13

6132123121111113112341221121242

60

218

8.26

-

>870 (17)^

814.65

472.38

1111112111153117142112412224221

Note ^: The results in (Gallardo et al., 2007) are displayed as graph for 49 ≤ n ≤ 55 and thus the numbers written here are a kind of 'approximation'. For 56 ≤ n ≤ 60, MA_TS runtimes are incomplete as MA_TS did NOT actually reach optimal solutions for some of the 20 runs (the number of runs that actually reach optimal solution is indicated in the bracket). Thus, the average runtimes of MA_TS for the last five instances should be longer than the numbers shown in this table.

Exploring Frontier LABS Instances (n > 60)

TSv7 is still reasonably fast for LABS instances up to n 60, thus we can use this state-of-the-art solver to explore frontier LABS instances (n > 60). We run TSv7 ONE time using initial random seed "1", keep it run until the time limit is elapsed and report the best found solution. The time limit is computed by TSv7 "runtime predictor" on 40 n 60 (1.03e-5 * 1.34^n), multiplied by "extra" constant 7.0, then divided by 60 to get the runtimes in minutes. However, the predicted runtimes are getting more unbearable as n gets larger. Therefore, we limit the runtimes for 71 n 77 to be 10.0 hours (600 minutes). These results are obtained using 2.33 GHz Core2 Duo desktop (our other faster machine).

To date, we are only aware of one source that published the best known objective values for LABS instances up to n = 64 (see "Reliable Cost Predictions for Finding Optimal Solutions to LABS Problem: Evolutionary and Alternative Algorithms (Brglez et al., 2003)). TSv7 can replicate the results for 61 n 64 but unable to improve the quality anymore. Perhaps, these values are indeed optimal. For n > 64, since there is no basis of comparison yet, we assume that the binary sequences found by TSv7 are the current best known pseudo-optimal so far. If any of you who visited this webpage managed to obtain better results for any of the LABS instances below, please contact us at stevenhalim at gmail dot com.

n Best Known so
far (May 2008)
TSv7
E
TSv7
F
TSv7 Runtimes
to get 1st BK
Max Runtimes
for TSv7
Date
Found
One of the best found LABS
(in Run Length Notation)
61

E = 226

226

8.23

3.35 m

1.1 h

21/05/08 33211112111235183121221111311311
62

E = 235

235

8.18

8.24 m

1.5 h

21/05/08 112212212711111511121143111422321
63

E = 207

207

9.59

4.13 m

2.0 h

21/05/08 2212221151211451117111112323231
64

E = 208

208

9.85

46.62 m

2.7 h

21/05/08 223224111341121115111117212212212
65

Perhaps ->

240

8.80

133.49 m/02.2 h

3.7 h

22/05/08 132323211111711154112151122212211
66

Perhaps ->

265

8.22

186.08 m/03.1 h

4.9 h

22/05/08 24321123123112112124123181111111311
67

Perhaps ->

241

9.31

245.92 m/04.1 h

6.6 h

22/05/08 12112111211222B2221111111112224542
68

Perhaps ->

250

9.25

393.95 m/06.6 h

8.8 h

22/05/08 11111111141147232123251412112221212
69

Perhaps ->

274

8.69

493.55 m/08.2 h

11.8 h

25/05/08 111111111141147232123251412112221212
70

Perhaps ->

295

8.31

744.17 m/12.4 h

15.8 h

26/05/08 232441211722214161125212311111111
71

Perhaps ->

275

9.17

467.33 m/07.8 h

10.0 h

28/05/08 241244124172222111113112311211231121
72

Perhaps ->

300

8.64

144.26 m/02.4 h

10.0 h

29/05/08 1111114111444171151122142122224222
73

Perhaps ->

308

8.65

73.44 m/01.2 h

10.0 h

29/05/08 1111112311231122113111212114171322374
74

Perhaps ->

349

7.85

13.93 m/00.2 h

10.0 h

27/05/08 11321321612333125111412121122511131111
75

Perhaps ->

341

8.25

479.40 m/08.0 h

10.0 h

30/05/08 12122132121211211111131111618433213232
76

Perhaps ->

338

8.54

378.30 m/04.6 h

10.0 h

30/05/08 111211112234322111134114212211221311B11
77

Perhaps ->

366

8.10

235.45 m/03.9 h

10.0 h

31/05/08 111111191342222431123312213411212112112

References

These results are reported in more details in our publications (download the local copy of those papers here):

  1. S. Halim, R. Yap, F. Halim. Engineering Stochastic Local Search for the Low Autocorrelation Binary Sequence Problem. In Principles and Practice of Constraint Programming (CP 2008, Sydney, Australia, September 14-18, 2008): to appear
