Operational Interface: Basic Operations, 16 of 16

Register for Notification [Specify Subscription Name -- Multi-Consumer Queue]

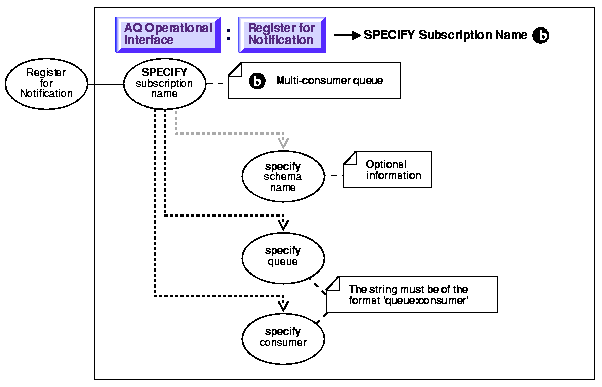

Figure 11-15 Use Case Diagram: Specify Subscription Name - Multi-Consumer Queue

To refer to the table of all basic operations having to do with the Operational Interface see:

"Use Case Model: Operational Interface -- Basic Operations"

Usage Notes

Not applicable.

Syntax

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment. Use the following syntax references for each programmatic environment:

PL/SQL (DBMS_AQ Package): Not available.
C (OCI): Oracle Call Interface Programmer's Guide OCI Programming Advanced Topics, Publish-Subscribe Notification
Visual Basic (OO4O) (Oracle Objects for OLE (OO4O) Online Help): From Help Topics, Contents tab, select OO4O Automation Server > OBJECTS > OraAQ Object > Monitoring Messages
Java (JDBC): Not available.

Examples

See Chapter 3, "AQ Programmatic Environments" for a list of available functions in each programmatic environment.

C (OCI): Register for Notifications For Single-Consumer and Multi-Consumer Queries

/* OCIRegister can be used by the client to register to receive notifications
   when messages are enqueued into non-persistent and normal queues. */
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <oci.h>


static OCIEnv     *envhp;
static OCIServer  *srvhp;
static OCIError   *errhp;
static OCISvcCtx  *svchp;


/* The callback that gets invoked on notification */
ub4 notifyCB(ctx, subscrhp, pay, payl, desc, mode)
dvoid *ctx;
OCISubscription *subscrhp;      /* subscription handle */
dvoid           *pay;           /* payload  */
ub4              payl;          /* payload length */
dvoid           *desc;          /* the AQ notification descriptor */
ub4              mode;
{
 text                *subname;
 ub4                  size;
 ub4                 *number = (ub4 *)ctx;
 text                *queue;
 text                *consumer;
 OCIRaw              *msgid;
 OCIAQMsgProperties  *msgprop;

  (*number)++;

  /* Get the subscription name */
  OCIAttrGet((dvoid *)subscrhp, OCI_HTYPE_SUBSCRIPTION,
                             (dvoid *)&subname, &size,
                             OCI_ATTR_SUBSCR_NAME, errhp);
 printf("got notification number %d for %.*s  %d  \n",
         *number, size, subname, payl);

 /* Get the queue name from the AQ notify descriptor */
 OCIAttrGet(desc, OCI_DTYPE_AQNFY_DESCRIPTOR, (dvoid *)&queue, &size,
             OCI_ATTR_QUEUE_NAME, errhp);

 /* Get the consumer name for which this notification was received */
 OCIAttrGet(desc, OCI_DTYPE_AQNFY_DESCRIPTOR, (dvoid *)&consumer, &size,
       OCI_ATTR_CONSUMER_NAME, errhp);

 /* Get the message id of the message for which we were notified */
 OCIAttrGet(desc, OCI_DTYPE_AQNFY_DESCRIPTOR, (dvoid *)&msgid, &size,
       OCI_ATTR_NFY_MSGID, errhp);

 /* Get the message properties of the message for which we were notified */
 OCIAttrGet(desc, OCI_DTYPE_AQNFY_DESCRIPTOR, (dvoid *)&msgprop, &size,
       OCI_ATTR_MSG_PROP, errhp);

}


int main(argc, argv)
int argc;
char *argv[];
{
  OCISession *authp = (OCISession *) 0;

  /* The subscription handles */
  OCISubscription *subscrhp[5];

  /* Registrations are for AQ namespace */
  ub4 namespace = OCI_SUBSCR_NAMESPACE_AQ;

  /* The context fot the callback */
  ub4 ctx[5] = {0,0,0,0,0};

  printf("Initializing OCI Process\n");

  /* The OCI Process Environment must be initialized  with OCI_EVENTS */
  /* OCI_OBJECT flag is set to enable us dequeue */
  (void) OCIInitialize((ub4) OCI_EVENTS|OCI_OBJECT, (dvoid *)0,
                       (dvoid * (*)(dvoid *, size_t)) 0,
                       (dvoid * (*)(dvoid *, dvoid *, size_t))0,
                       (void (*)(dvoid *, dvoid *)) 0 );

  printf("Initialization successful\n");

  /* The standard OCI setup */
  printf("Initializing OCI Env\n");
  (void) OCIEnvInit((OCIEnv **) &envhp, OCI_DEFAULT, (size_t) 0,
                (dvoid **) 0 );

  (void) OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &errhp, OCI_HTYPE_ERROR,
                   (size_t) 0, (dvoid **) 0);

  /* Server contexts */
  (void) OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &srvhp, OCI_HTYPE_SERVER,
                   (size_t) 0, (dvoid **) 0);

  (void) OCIHandleAlloc( (dvoid *) envhp, (dvoid **) &svchp, OCI_HTYPE_SVCCTX,
                   (size_t) 0, (dvoid **) 0);


  printf("connecting to server\n");
  (void) OCIServerAttach( srvhp, errhp, (text *)"", strlen(""), 0);
  printf("connect successful\n");

  /* Set attribute server context in the service context */
  (void) OCIAttrSet( (dvoid *) svchp, OCI_HTYPE_SVCCTX, (dvoid *)srvhp,
          (ub4) 0, OCI_ATTR_SERVER, (OCIError *) errhp);

  (void) OCIHandleAlloc((dvoid *) envhp, (dvoid **)&authp,
             (ub4) OCI_HTYPE_SESSION, (size_t) 0, (dvoid **) 0);

  (void) OCIAttrSet((dvoid *) authp, (ub4) OCI_HTYPE_SESSION,
                 (dvoid *) "scott", (ub4) strlen("scott"),
                 (ub4) OCI_ATTR_USERNAME, errhp);

  (void) OCIAttrSet((dvoid *) authp, (ub4) OCI_HTYPE_SESSION,
                 (dvoid *) "tiger", (ub4) strlen("tiger"),
                 (ub4) OCI_ATTR_PASSWORD, errhp);

  checkerr(errhp, OCISessionBegin ( svchp,  errhp, authp, OCI_CRED_RDBMS,
           (ub4) OCI_DEFAULT));

  (void) OCIAttrSet((dvoid *) svchp, (ub4) OCI_HTYPE_SVCCTX,
                   (dvoid *) authp, (ub4) 0,
                   (ub4) OCI_ATTR_SESSION, errhp);

 /* Setting the subscription handle for notification on
    a NORMAL single consumer queue */
  printf("allocating subscription handle\n");
  subscrhp[0] = (OCISubscription *)0;
  (void) OCIHandleAlloc((dvoid *) envhp, (dvoid **)&subscrhp[0],
         (ub4) OCI_HTYPE_SUBSCRIPTION,
         (size_t) 0, (dvoid **) 0);

  printf("setting subscription name\n");
  (void) OCIAttrSet((dvoid *) subscrhp[0], (ub4) OCI_HTYPE_SUBSCRIPTION,
                (dvoid *) "SCOTT.SCQ1", (ub4) strlen("SCOTT.SCQ1"),
                (ub4) OCI_ATTR_SUBSCR_NAME, errhp);

  printf("setting subscription callback\n");
  (void) OCIAttrSet((dvoid *) subscrhp[0], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) notifyCB, (ub4) 0,
                 (ub4) OCI_ATTR_SUBSCR_CALLBACK, errhp);

 printf("setting subscription context \n");
 (void) OCIAttrSet((dvoid *) subscrhp[0], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *)&ctx[0], (ub4)sizeof(ctx[0]),
                 (ub4) OCI_ATTR_SUBSCR_CTX, errhp);

  printf("setting subscription namespace\n");
  (void) OCIAttrSet((dvoid *) subscrhp[0], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) &namespace, (ub4) 0,
                 (ub4) OCI_ATTR_SUBSCR_NAMESPACE, errhp);

 /* Setting the subscription handle for notification on a NORMAL multi-consumer
    consumer queue */
  subscrhp[1] = (OCISubscription *)0;
  (void) OCIHandleAlloc((dvoid *) envhp, (dvoid **)&subscrhp[1],
         (ub4) OCI_HTYPE_SUBSCRIPTION,
         (size_t) 0, (dvoid **) 0);

  (void) OCIAttrSet((dvoid *) subscrhp[1], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) "SCOTT.MCQ1:APP1",
                 (ub4) strlen("SCOTT.MCQ1:APP1"),
                 (ub4) OCI_ATTR_SUBSCR_NAME, errhp);

  (void) OCIAttrSet((dvoid *) subscrhp[1], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) notifyCB, (ub4) 0,
                 (ub4) OCI_ATTR_SUBSCR_CALLBACK, errhp);

  (void) OCIAttrSet((dvoid *) subscrhp[1], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *)&ctx[1], (ub4)sizeof(ctx[1]),
                 (ub4) OCI_ATTR_SUBSCR_CTX, errhp);

  (void) OCIAttrSet((dvoid *) subscrhp[1], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) &namespace, (ub4) 0,
                 (ub4) OCI_ATTR_SUBSCR_NAMESPACE, errhp);


 /* Setting the subscription handle for notification on a non-persistent
   single-consumer queue */
  subscrhp[2] = (OCISubscription *)0;
  (void) OCIHandleAlloc((dvoid *) envhp, (dvoid **)&subscrhp[2],
         (ub4) OCI_HTYPE_SUBSCRIPTION,
         (size_t) 0, (dvoid **) 0);

  (void) OCIAttrSet((dvoid *) subscrhp[2], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) "SCOTT.NP_SCQ1",
                 (ub4) strlen("SCOTT.NP_SCQ1"),
                 (ub4) OCI_ATTR_SUBSCR_NAME, errhp);

  (void) OCIAttrSet((dvoid *) subscrhp[2], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) notifyCB, (ub4) 0,
                 (ub4) OCI_ATTR_SUBSCR_CALLBACK, errhp);

  (void) OCIAttrSet((dvoid *) subscrhp[2], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *)&ctx[2], (ub4)sizeof(ctx[2]),
                 (ub4) OCI_ATTR_SUBSCR_CTX, errhp);

  (void) OCIAttrSet((dvoid *) subscrhp[2], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) &namespace, (ub4) 0,
                 (ub4) OCI_ATTR_SUBSCR_NAMESPACE, errhp);


 /* Setting the subscription handle for notification on
    a non-persistent multi consumer queue */
 /* Waiting on user specified recipient */
  subscrhp[3] = (OCISubscription *)0;
  (void) OCIHandleAlloc((dvoid *) envhp, (dvoid **)&subscrhp[3],
         (ub4) OCI_HTYPE_SUBSCRIPTION,
         (size_t) 0, (dvoid **) 0);

  (void) OCIAttrSet((dvoid *) subscrhp[3], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) "SCOTT.NP_MCQ1",
                 (ub4) strlen("SCOTT.NP_MCQ1"),
                 (ub4) OCI_ATTR_SUBSCR_NAME, errhp);

  (void) OCIAttrSet((dvoid *) subscrhp[3], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) notifyCB, (ub4) 0,
                 (ub4) OCI_ATTR_SUBSCR_CALLBACK, errhp);

 (void) OCIAttrSet((dvoid *) subscrhp[3], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *)&ctx[3], (ub4)sizeof(ctx[3]),
                 (ub4) OCI_ATTR_SUBSCR_CTX, errhp);

  (void) OCIAttrSet((dvoid *) subscrhp[3], (ub4) OCI_HTYPE_SUBSCRIPTION,
                 (dvoid *) &namespace, (ub4) 0,
                 (ub4) OCI_ATTR_SUBSCR_NAMESPACE, errhp);


  printf("Registering for all the subscriptiosn \n");
  checkerr(errhp, OCISubscriptionRegister(svchp, subscrhp, 4, errhp,
                 OCI_DEFAULT));

  printf("Waiting for notifcations \n");

  /* wait for minutes for notifications */
  sleep(300);

  printf("Exiting\n");
}
