Lab #7 (CS1101 AY2007/8 Semester 1)

Date of release: 16 October 2007, Tuesday, 23:59.

Submission deadline: 24 October 2007, Wednesday, 23:59.

School of Computing, National University of Singapore

This lab assignment comprises three exercises. Only the first
two exercises are graded, but you are **strongly encouraged**
to attempt the third exercise.

You are advised to review the material covered in chapters 1 through 10 and read Programming Style, Design and Marking Guidelines before attempting this lab assignment. You should not use syntax or constructs not covered in lectures; you shouldn't need to and may even be penalized for doing so (if the objective of the assignment is undermined).

A word of advice: **Code incrementally**. Don't try to finish all parts of
a program then compile it. Write your program in bits and pieces and
compile frequently. Try to maintain a compilable program even while you are
working on it. Submitting a compilable program that partially works is
better than submitting an un-compilable one. This last point especially
applies to the programming exams. Seriously, code incrementally.

The following topics have not been covered and hence you should not use them (if you are in doubt whether you can use certain features not mentioned below and are not yet covered in class, please consult your discussion leader or lecturer first):

- Recursion
- Inheritance and polymorphism

You may assume that **all input data are correct**.

You should use `Scanner` class on `System.in` for
input and `System.out` for output in your programs,
unless otherwise stated.

Your last output statement should be a `println` and not
`print`.

**Test your programs thoroughly with your own input data before you
submit to CourseMarker.** Do not use CourseMarker as a debugging tool.
For this lab, the number of submissions is set to **6**.
Only your last submission will be graded.

In general, the expected time to complete a lab
assignment (including all graded exercises) is
between **3 to 5 hours**. You should aim not to spend
more than 5 hours. It might be difficult at first, but
it should get easier as you gain experience. Make that your
target.

- Using array
- Writing a popular game solver

**Sudoku** is a popular logic-based number placement puzzle.
The 9×9 board has 9 rows, 9 columns and 9 sections of
3×3 cells.
The objective is to fill the board so that each row, each
column and each section contains the digits from 1 to 9.

The puzzle is given as an incomplete Sudoku board in which some cells are blanks. The solver needs to fill in all the blank cells with the correct values.

Figure 1 below, taken from Wikipedia: Sudoku, shows a Sudoku puzzle and its solution.

There are numerous websites on Sudoku. Surf the Internet to explore!

**Figure 1.** A Sudoku puzzle and its solution.

You are given the following codes:

- Sudoku.java (partial code)
- PlaySudoku.java (partial code)

You are to write two programs `Sudoku.java`
and `PlaySudoku.java`.

The class `Sudoku` defines a Sudoku puzzle, using
a two-dimensional 9×9 integer array as its data
member. You are to complete the following methods:

`Sudoku( int[][] )``toString( )``solve( )`

You may include additional methods to make your program more modular.

The method `solve()` uses this very simple
algorithm:

Repeat the following until no more blank cells can be filled:

Scan the board from top to bottom, and for each row from left to right.

For each blank cell encountered:

Examine the row, column and section the blank cell is in,

if only one value for that blank cell fits, fill it with that value.

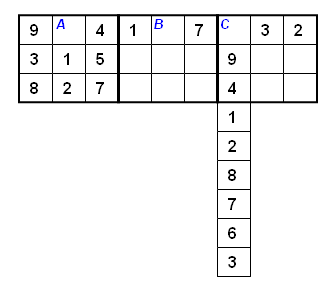

Look at Figure 2 below for an example. Scanning the
board from top to bottom, left to right, we encounter
the first blank cell at ** A**. After examining
the row, column and section

Next is the blank cell at ** B**. Since there can
be two candidate values, the algorithm cannot fill in

Next we visit the blank cell at ** C**, since the
only value that fits is 5, we fill

When we return to ** B** in the next round, we
will be able to fill it with the value 8.

**Figure 2.** An example on how the algorithm works.

Note that this algorithm solves only the simplest puzzles. For more difficult puzzles, it does not fill in all blank cells. Leave it as it is.

(You are not required to submit a solver that solves all Sudoku puzzles. This is beyond CS1101 and might be too tough to be done in two hours. Although some students have commented that the lab assignments are too easy, I wouldn't want to scare off the others. Hence, I shall leave this as an optional exercise for those who are interested, and you can present your solution at your discussion session. The ambitious ones may even turn this into a complete graphics-based Sudoku game!)

The `toString()` method returns a string representation
of the Sudoku board. A blank cell is indicated as '-' in the
string representation. See the second sample run below for an
example.

`PlaySudoku.java` is an application program on the
`Sudoku` class. Study the given partial code and
complete the `readBoard(Scanner)` method.

The sample runs below show the user's inputs. 81 values are entered by the user, with 0 (zero) representing a blank cell.

(If you are programming in your sunfire UNIX account, or using
line commands, you may simplify the data entry by creating a
text file that contains the input data, then use the input
redirection "<" to feed the data into your program. For example,
create a text file `sudoku.in` that contains the 81 input
values, and then type `java PlaySudoku < sudoku.in`
to run the program.)

Sample run using interactive input (user's input shown in
blue; output shown in
**bold purple**):

$ javac Sudoku.java $ javac PlaySudoku.java $ java PlaySudoku Enter the board, using 0 to indicate a blank cell: 5 3 0 0 7 0 0 0 0 6 0 0 1 9 5 0 0 0 0 9 8 0 0 0 0 6 0 8 0 0 0 6 0 0 0 3 4 0 0 8 0 3 0 0 1 7 0 0 0 2 0 0 0 6 0 6 0 0 0 0 2 8 0 0 0 0 4 1 9 0 0 5 0 0 0 0 8 0 0 7 9The Sudoku board solved: 5 3 4 6 7 8 9 1 2 6 7 2 1 9 5 3 4 8 1 9 8 3 4 2 5 6 7 8 5 9 7 6 1 4 2 3 4 2 6 8 5 3 7 9 1 7 1 3 9 2 4 8 5 6 9 6 1 5 3 7 2 8 4 2 8 7 4 1 9 6 3 5 3 4 5 2 8 6 1 7 9

Another sample run, showing a case where the puzzle cannot be solved completely by the given algorithm.

$ java PlaySudoku Enter the board, using 0 to indicate a blank cell: 4 1 9 0 0 0 7 2 0 0 0 0 0 0 9 3 4 0 5 0 0 0 0 0 6 0 0 9 0 0 4 8 6 0 0 0 0 0 8 0 9 0 1 0 0 0 0 0 2 1 3 0 0 9 0 0 6 0 0 0 0 0 7 0 8 2 6 0 0 0 0 0 0 9 4 0 0 0 8 6 3The Sudoku board solved: 4 1 9 - - - 7 2 - 8 6 7 - - 9 3 4 - 5 2 3 - - - 6 - - 9 3 1 4 8 6 - - - 2 4 8 - 9 - 1 - - 6 7 5 2 1 3 4 8 9 - 5 6 - - - - - 7 - 8 2 6 - - - - - - 9 4 - - - 8 6 3

Submit your programs `Sudoku.java` and
`PlaySudoku.java` through CourseMarker.

- Remember to write your name in your program.
- Write a modular program, that is, do not put all codes inside the main method. Each method should be preceded by a comment that describes what it does.
- Do not submit your assignment on the eleventh hour.
- Test your program thoroughly with different inputs.
- Ensure that the outputs of your program comform
to the sample outputs. Note that there is a
**blank line**after the Sudoku board in the output. (Explanation: Why is it so? This is to be consistent with the instruction on using a println and not print in the last output statement. The output is produced by calling System.out.println(puzzle), where puzzle is a Sudoku object. Since the puzzle, when printed, contains a newline at the end of every row, the above println statement will create a blank line after the board in the output.) - Aim to complete this exercise within two hours: algorithm (40 minutes), coding (20 minutes), testing (60 minutes).

- Using array
- Using constant

This is one of past year's CS1101X Practical Exam questions. The time limit given was 1 hour, so you should aim to complete it within an hour.

A bunny can hop at most 50 centimetres far. It wants to cross to the other side of the river, but it cannot swim. So the only hope is to hop on the rocks on the river, which are positioned in a straight line. The positions of the rocks are measured from the start location, assuming that the bunny starts at location zero. The opposite bank could be treated as a big rock.

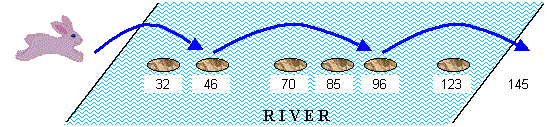

In Figure 3 below, the rocks are at locations 32, 46, 70, 85, 96, 123, and the opposite riverbank at location 145.

**Figure 3.** Positions of rocks.

The bunny will jump as far as it could for each hop. **What is the
smallest number of jumps it needs to take to reach the other
side of the river?** For the above example, it needs to make
3 jumps, as shown in the diagram above.

Write a program `RabbitJumps.java` that reads in a positive
integer * n* that represents the number of rocks
(including the opposite riverbank), and then on the next line

To make your program more modular, you should include a method
`int countJumps(int[])` to compute the number of jumps required.

Sample run using interactive input (user's input shown in
blue; output shown in
**bold purple**):

$ javac RabbitJumps.java $ java RabbitJumps Enter n: 7 32 46 70 85 96 123 1453

Sample run #2:

$ java RabbitJumps Enter n: 5 40 70 150 160 180-1

Sample run #3:

$ java RabbitJumps Enter n: 11 30 70 75 120 160 170 180 190 200 246 2587

Submit your program `RabbitJumps.java` through CourseMarker.

- Remember to write your name in your program.
- Write a modular program, that is, do not put all codes inside the main method. Each method should be preceded by a comment that describes what it does.
- Do not submit your assignment on the eleventh hour.
- You are to use an integer array to store the rock positions.
- Do
**not use additional array**. - You should have a
`countJumps(int[])`to compute the number of jumps. - Your program will be tested with 10 test data sets instead of 5.
- Aim to complete this exercise within one hour: algorithm (20 minutes), coding (10 minutes), testing (30 minutes).

- Using array
- Creating a Java class
- Instantiating objects
- Constructors and methods

**Note:** Although this exercise is not graded, you
are **strongly encouraged** to attempt it for
practice, as it involves array of objects.

You are to write a program `MyPolygon.java`, which uses
the pre-defined `Point` class.
A `Point` object is a 2D point with integer x- and y-coordinates.
Refer to
Java API: java.awt.Point for details.

The class `MyPolygon` defines a simple polygon with a
list of vertices, listed in clockwise or counter-clockwise direction.
(A simple polygon is a polygon in which the only place two
edges can meet is a vertex. Such a polygon has a well defined
interior and exterior.)

The class `MyPolygon` contains the following data members:

- The number of vertices (which is also the number of edges)
the polygon contains -
`nVertices`. You may assume that there are**at most 10 vertices.**

- The list of vertices (stored in an array) -
`vertices`. Each vertex is an instance of the class`Point`.

(Compare this with the predefined class Java API: java.awt.Polygon.)

The class `MyPolygon` contains the following methods:

- 2 constructors:

`MyPolygon();`

`MyPolygon( Point [], int );`

The first constructor creates an empty polygon (with no vertex). The second constructor creates a polygon from the array of`Point`objects in the parameters: the first parameter being the array of`Point`objects, and the second being the number of vertices.

- Overriding the
`toString()`method to display a`MyPolygon`object in this format:

`[ (vertices[0].x, vertices[0].y) (vertices[1].x, vertices[1].y) (vertices[2].x, vertices[2].y) ... ]`

Refer to the sample runs below for two examples.

- Any other appropriate methods required by the main method.

- A main method that performs the following:
- Creates a polygon by reading in a list of vertices.
(There will be at least 3 vertices and at most 10 vertices.)
The vertices are given in either clockwise or
counter-clockwise direction.

- Computes the area of a bounding box of the polygon.
The bounding box is the smallest rectangle whose sides
are parallel to the x- or y-axis, and can completely
contain the polygon.

- Determines whether the polygon is concave or convex (see below).

- Creates a polygon by reading in a list of vertices.
(There will be at least 3 vertices and at most 10 vertices.)
The vertices are given in either clockwise or
counter-clockwise direction.

You may assume that no three consecutive vertices are co-linear.

**Convex polygon**

A polygon is **convex** if it contains *all* line segments
connecting any pair of its vertices. A polygon that is not convex
is a concave polygon. Figure 4(a) below shows a convex polygon
and Figure 4(b) shows a concave one.

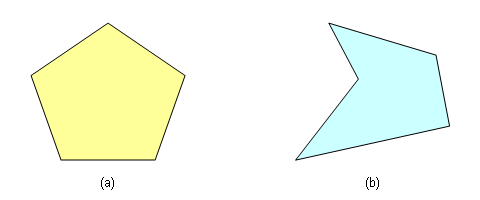

**Figure 4. (a)** A convex polygon. **(b)** A concave
polygon.

A simple way to determine whether a polygon is convex is to
conduct a *walk* along the boundary of the polygon, going
from one vertex to the next. If we *walk* in the clockwise
direction, as shown in Figure 5(a) below, then every turn is a
**right turn**. For example, *A-B-C* is a right turn, so
is *B-C-D*, and so on.

On the other hand, if we *walk* in the counter-clockwise
direction, as shown in Figure 5(b) below, then every turn is a
**left turn**.

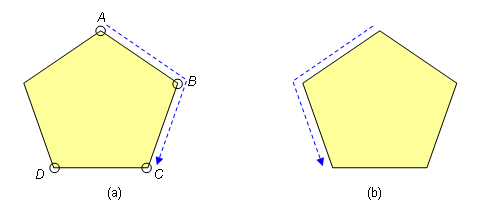

**Figure 5. (a)** Walking along the boundary of a convex
polygon in a clockwise direction, every turn is a right turn.
**(b)** In the counter-clockwise direction, every turn
is a left turn.

As expected, a concave polygon will have a mix of right turn(s) and left turn(s).

Given three consecutive vertices *A*, *B*, and *C* of
a polygon, to determine if *A-B-C* is a right turn or
a left turn, we compute the determinant of this 3×3 matrix:

where *A* = (*x*_{A}, *y*_{A}),
*B* = (*x*_{B}, *y*_{B}),
and *C* = (*x*_{C}, *y*_{C}).
If the determinant is a negative value, then *A-B-C* is a right
turn; if the determinant is positive, then it is a left turn.

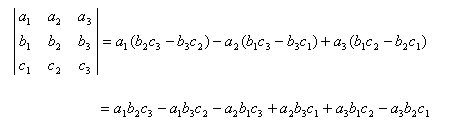

The determinant of a general 3×3 matrix is computed as follows:

Sample run using interactive input (user's input shown in
blue; output shown in
**bold purple**):

$ javac MyPolygon.java $ java MyPolygon Enter number of vertices: 5 Enter vertices: 0 10 5 20 10 10 8 0 2 0Polygon = [ (0,10) (5,20) (10,10) (8,0) (2,0) ] Area of bounding box = 200 Convex

Another sample run:

$ java MyPolygon Enter number of vertices: 4 Enter vertices: 0 0 -6 -2 4 -2 0 5Polygon = [ (0,0) (-6,-2) (4,-2) (0,5) ] Area of bounding box = 70 Concave

Submit your program `MyPolygon.java` through CourseMarker.

- Test your program thoroughly with different inputs.
- Ensure that the outputs of your program comform to the sample outputs.
- Your program will be tested with 10 test data sets instead of 5.

The deadline for handing in all programs is **24 October 2007, Wednesday,
23:59**. Late submissions will NOT be accepted.

**Start early**. Do not wait till the eleventh hour and
rush to meet the deadline.

- 0 Introduction

- 1 Exercise 1: Sudoku (70%)

- 2 Exercise 2: Rabbit Jumps (30%)

- 3 Exercise 3: Polygon (0%)

- 4 Deadline

tantc@comp.nus.edu.sg

Tue Sep 18 13:06:48 SGT 2007
