MntComponent Class Reference

MntComponent is the base class of all Mnt components. More...

#include <mnt_component.h>

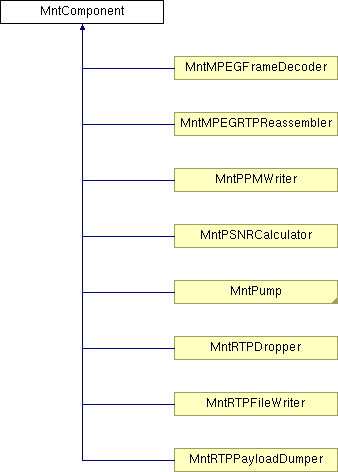

Inheritance diagram for MntComponent:

List of all members.

Public Member Functions
virtual void	recv (MntData *)
	This method should be overwritten by subclass.
virtual void	flush ()
	Some MntComponent object may buffer some data instead of processing them immediately.
virtual void	push (MntComponent *component, MntData *data)
	This method sends processed data to the a specific component.
virtual void	push (MntData *data)
	This method sends processed data to all components down stream.
virtual void	flush_next ()
	This method calls flush method of all components down stream.
virtual void	push (MntComponent *component, MntClientData data)
	???
virtual void	pull (MntClientData param)
	This method pull data from the upstream node when needed.
char *	eval_instproc (const char *method)
	This methods is the hook from C++ to Tcl methods.
MntComponent *	lookup_tcl_object (const char *name)
	Given the name of a Tcl object, returns the pointer to the corresponding C++ object.
	MntComponent ()
	Constructor for MntComponent, initialize every member to NULL.
void	add_link_to (MntComponent *c)
	Add a link from this object to another component c.
void	del_link_to (MntComponent *c)
	Remove the link from this object to component c.
int	command (int, const char *const *)
	This method overwrites TclObject command method and adds additional mapping from C++ functions to Tcl function.
Public Attributes
MntComponent *	down_stream_
MntComponent *	up_stream_
MntComponent *	next_

---

Detailed Description

MntComponent is the base class of all Mnt components.

A component is a C++ object that can be accessed using Tcl interface. A MntComponent typically receives some data, processes it, and passes it to zero or more other components.

To use MntComponent, two things are typically needed. First, overwrite the recv() method to process the data. Second, create a static class object to expose the component to Tcl.

MntComponent objects can be linked at the Tcl-level to create a tree of components. Data flows through the tree, and are processed along the way.

An MntComponent object maintains a link list of other components "downstream", i.e., nodes to pass data to.

---

Member Function Documentation

void MntComponent::add_link_to (  MntComponent *  c  )

Add a link from this object to another component c. Parameters: c  component to linked to.

void MntComponent::del_link_to (  MntComponent *  c  )

Remove the link from this object to component c. If c is not a valid down stream object, nothing happens. If for some reasons multiple c exists, all instances of c is removed. Parameters: c  component to remove.

char* MntComponent::eval_instproc (  const char *  method  )  [inline]

This methods is the hook from C++ to Tcl methods. It allows invocation Tcl methods from C++. Parameters: method  the name of the Tcl method to invoke. This string, can optionally contains arguments to the method as well.

virtual void MntComponent::flush (   )  [inline, virtual]

Some MntComponent object may buffer some data instead of processing them immediately. In such cases, it may be necessary to call flush() at appropriate point of the program to push the buffered data down stream.

MntComponent* MntComponent::lookup_tcl_object (  const char *  name  )  [inline]

Given the name of a Tcl object, returns the pointer to the corresponding C++ object. Parameters: name  A string containing the name of the Tcl object to looked up.

virtual void MntComponent::pull (  MntClientData  param  )  [inline, virtual]

This method pull data from the upstream node when needed. ???

virtual void MntComponent::push (  MntData *  data  )  [inline, virtual]

This method sends processed data to all components down stream. Parameters: data  Processed data to pass down stream.

virtual void MntComponent::push (  MntComponent *  component, MntData *  data )  [inline, virtual]

This method sends processed data to the a specific component. Parameters: component  Component to pass data to. data  Processed data object to pass to component.

virtual void MntComponent::recv (  MntData *   )  [inline, virtual]

This method should be overwritten by subclass. This is where most actions happens. Whenever some data is received, this method is called. Typically, a component will process the data in this method, and call push() to push processed data to the nodes down stream. Reimplemented in MntMPEGFrameDecoder, MntMPEGRTPReassembler, MntPPMWriter, MntPSNRCalculator, MntRTPDropper, MntRTPFileWriter, and MntRTPPayloadDumper.

---

Member Data Documentation

MntComponent* MntComponent::down_stream_

first node to passed data to

MntComponent* MntComponent::next_

next node in the link list of downstream nodes Reimplemented in MntMPEGFrameDecoder.

MntComponent* MntComponent::up_stream_

node this component will received data from

---

The documentation for this class was generated from the following files:

• mnt_component.h
• mnt_component.cc

---
