Close a BFILE with FILECLOSE

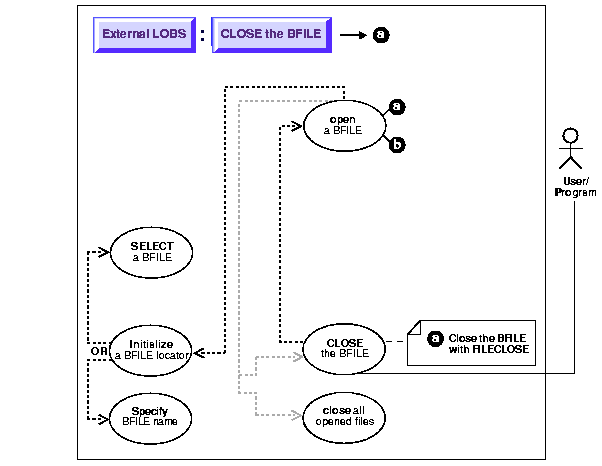

Figure 11-34 Use Case Diagram: Close a BFILE with FILECLOSE

See Also: "Use Case Model: External LOBs (BFILEs)" for all basic operations of External LOBs (BFILES).

Purpose

This procedure describes how to close a BFILE with FILECLOSE.

Usage Notes

Not applicable.

Syntax

See Chapter 3, "LOB Programmatic Environments" for a list of available functions in each programmatic environment. Use the following syntax references for each programmatic environment:

• PL/SQL (DBMS_LOB)(Oracle8i Supplied PL/SQL Packages Reference): Chapter 18, "DBMS_LOB" -- FILEOPEN, FILECLOSE

• C (OCI) (Oracle Call Interface Programmer's Guide): Chapter 7, "LOB and File Operations" for usage notes. Chapter 15, "Relational Functions" -- LOB Functions, OCILobFileClose

• COBOL (Pro*COBOL): A syntax reference is not applicable in this release.

• C/C++ (Pro*C/C++): A syntax reference is not applicable in this release.

• Visual Basic (OO4O): A syntax reference is not applicable in this release.

• Java (JDBC) Oracle8i JDBC Developer's Guide and Reference: Chapter 7, "Working With LOBs" -- Creating and Populating a BLOB or CLOB Column. Further extensions are available in Oracle8i SQLJ Developer's Guide and Reference): Chapter 5, "Type Support", Oracle Type Support, Support for BLOB, CLOB, and BFILE.

Scenario

While you can continue to use the older FILECLOSE form, we strongly recommend that you switch to using CLOSE, because this facilitate future extensibility. This example can be read in conjunction with the example of opening a BFILE.

Examples

• PL/SQL (DBMS_LOB Package): Close a BFile with FILECLOSE

• C (OCI): Close a BFile with FILECLOSE

• COBOL (Pro*COBOL): No example is provided with this release.

• C/C++ (Pro*C/C++): No example is provided with this release.

• Visual Basic (OO4O): No example is provided. See note.

• Java (JDBC): Close a BFile with FILECLOSE

PL/SQL (DBMS_LOB Package): Close a BFile with FILECLOSE

/* Note that the example procedure closeBFILE_procOne is not part of the
   DBMS_LOB package: */
CREATE OR REPLACE PROCEDURE closeBFILE_procOne IS
   Lob_loc    BFILE := BFILENAME('PHOTO_DIR', 'Lincoln_photo');
BEGIN
   DBMS_LOB.FILEOPEN(Lob_loc, DBMS_LOB.FILE_READONLY);
   /* ...Do some processing. */
   DBMS_LOB.FILECLOSE(Lob_loc);
END;

C (OCI): Close a BFile with FILECLOSE

void BfileFileClose(envhp, errhp, svchp, stmthp)
OCIEnv       *envhp;
OCIError     *errhp;
OCISvcCtx    *svchp;
OCIStmt      *stmthp;
{

   OCILobLocator *bfile_loc;

   /* Allocate the locator descriptors */
   (void) OCIDescriptorAlloc((dvoid *) envhp, (dvoid **) &bfile_loc,
                             (ub4) OCI_DTYPE_FILE,
                             (size_t) 0, (dvoid **) 0);

   checkerr(errhp, OCILobFileSetName(envhp, errhp, &bfile_loc,
                        (OraText *) "PHOTO_DIR", (ub2) strlen("PHOTO_DIR"),
                        (OraText *) "Lincoln_photo",
                        (ub2) strlen("Lincoln_photo")));

   checkerr(errhp, OCILobFileOpen(svchp, errhp, bfile_loc,
                                          (ub1) OCI_FILE_READONLY));

   checkerr(errhp, OCILobFileClose(svchp, errhp, bfile_loc));

   /* Free the locator descriptor */
   OCIDescriptorFree((dvoid *)bfile_loc, (ub4)OCI_DTYPE_FILE);
}

Visual Basic (OO4O): Close a BFile with FILECLOSE

Note: At the present time, OO4O only offers BFILE closing with CLOSE (see below).

Java (JDBC): Close a BFile with FILECLOSE

import java.io.InputStream;
import java.io.OutputStream;

// Core JDBC classes:
import java.sql.DriverManager;
import java.sql.Connection;
import java.sql.Statement;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;

// Oracle Specific JDBC classes:
import oracle.sql.*;
import oracle.jdbc.driver.*;
public class Ex4_45
{
  public static void main (String args [])
       throws Exception
  {
    // Load the Oracle JDBC driver:
    DriverManager.registerDriver(new oracle.jdbc.driver.OracleDriver());

    // Connect to the database:
    Connection conn =
      DriverManager.getConnection ("jdbc:oracle:oci8:@", "samp", "samp");

    conn.setAutoCommit (false);

    // Create a Statement:
    Statement stmt = conn.createStatement ();

    try
    {
       BFILE src_lob = null;
       ResultSet rset = null;
       boolean result = false;

       rset = stmt.executeQuery (
          "SELECT BFILENAME('PHOTO_DIR', 'Lincoln_photo') FROM DUAL");
       if (rset.next())
       {
          src_lob = ((OracleResultSet)rset).getBFILE (1);
       }

       result = src_lob.isFileOpen();
       System.out.println(
          "result of fileIsOpen() before opening file : " + result);

       src_lob.openFile();

       result = src_lob.isFileOpen();
       System.out.println(
          "result of fileIsOpen() after opening file : " + result);

       // Close the BFILE,  statement and connection:
       src_lob.closeFile();
       stmt.close();
       conn.commit();
       conn.close();
    }
    catch (SQLException e)
    {
       e.printStackTrace();
    }
  }
}
